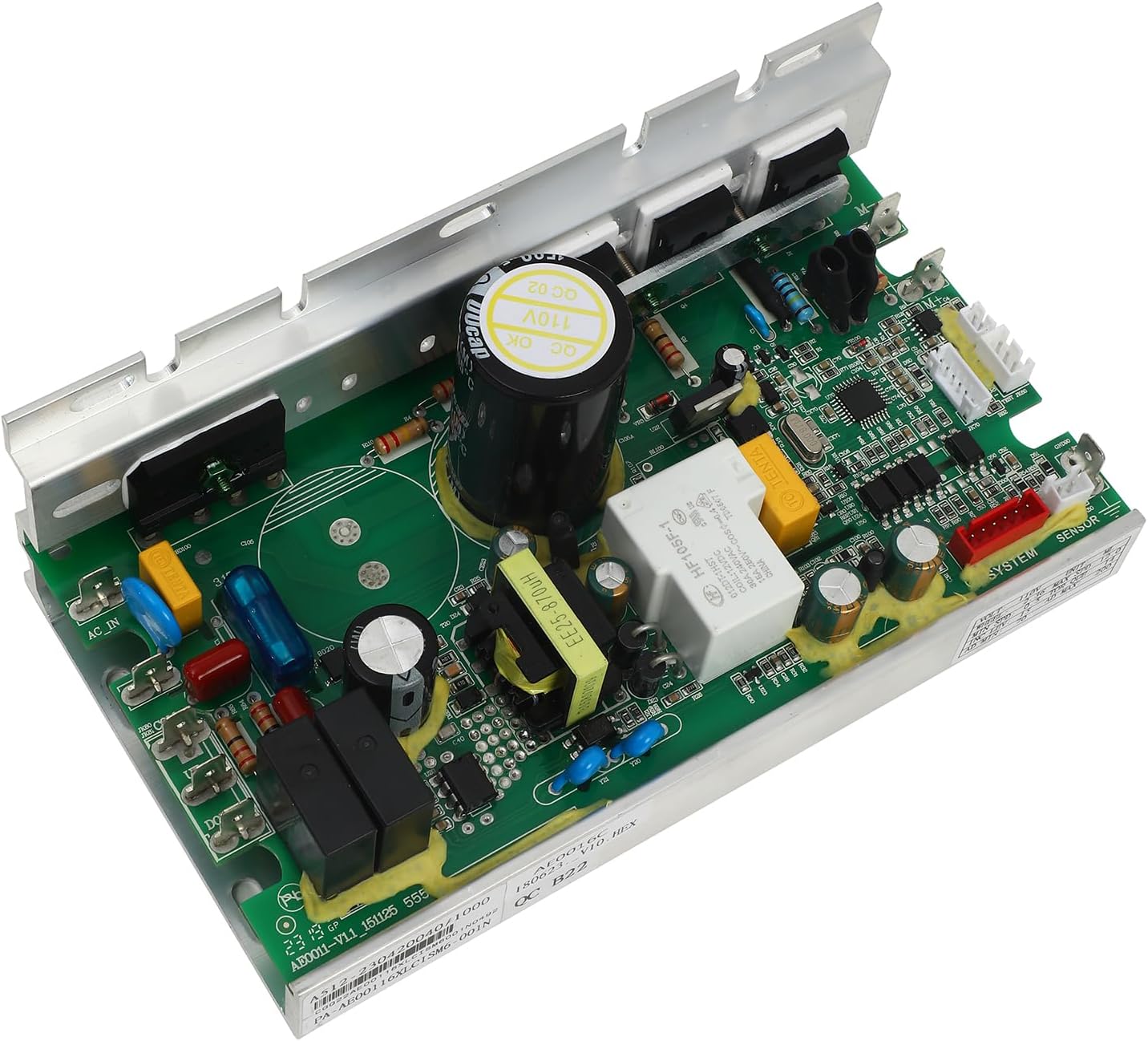

Generic AE0016C Treadmill Control Board Motherboard Treadmill Motor Controller

The exception codeIn the event of an error, the screen will jump to [Home screenl, followed by the error code.E1: lf the motor has no output signal during correction, then all output signals STOP and the "E1" code is displayed.E2: When the engine is overloaded and the control board activates overcurrent protection, the "E2" code is displayed, and all outputs are stoppedE3:When ascension fails to corect through, the "E3" code is displaved. ifthe lNClNE action is abnormal and cannot return to zero to 0% during POWER UPf the code "E3" is displayed in the lNCLINE window while the program is running, this function is abnormal, but it must stil be operableSolution: Self-check, redropE4: When the voltage at both ends ofthe motor is abnormal or the motor wiring is abnormal, the"E4" codeis displayed,and all output is STOPE5: When the communication between the electronit watch and the control board is intemupted orabnommal, the"5" code is displaved, and all outputs are STOP. setlube mE6: When the controller fails, the "E6" code is displayed and all outputs are stopped.Just replace the controllerE7: When the external voltage is abnormal, the "E7" code is displayed and all outputs are STOP.Just replace the controller

• Condition: new with heatsink and Test working before shipping
• Package including 1pc controller
• Suitable for the new F63
• D020109 or CRD020109 – motor control board – F63 & 65 – 2016
• Motor Controller W/Plate (Ae00116-1Lx)
